15mm Backplate + Angled Micropoint Bayonet Socket — Cooker Connection Bundle
Complete 2-piece cooker connection pack: 15mm backplate with matching angled micropoint bayonet socket. CE certified and EN tested for safe, reliable connections to micropoint-equipped cookers (Natural Gas & LPG).
Why this bundle?
-
Two-part solution: Backplate and angled micropoint socket sold together for neat, code-compliant installation.
- These are NOT sealed so the installer can turn these left or right to preference!
- Male fitting is on 15mm copper pipe end which is easier for the installer!
-
Safety certified: Socket passes EN 1775 high-temperature endurance testing (650°C for 30 minutes) and meets EN15069; CE marked.
-
Micropoint compatibility: Designed for standard 15mm micropoint connections used on many gas cookers.
-
Neat finish: Angled socket keeps connections flush to the wall for a tidy installation.
What's included
-
1 × 15mm Backplate (for wall mounting)
-
1 × Angled Micropoint Bayonet Gas Cooker Socket (self-sealing) — 15mm interface
- Fixing screws & simple installation instructions
Product details & specifications
15mm Backplate
Sturdy backplate designed to support the angled micropoint socket and provide a secure mounting point to the wall or utility box.
| Specification |
Details |
| Type |
Mounting backplate for bayonet socket |
| Connection |
15mm micropoint / standpipe interface |
| Material |
Corrosion-resistant metal (model dependent) |
| Fixings |
Supplied screws for standard installations |

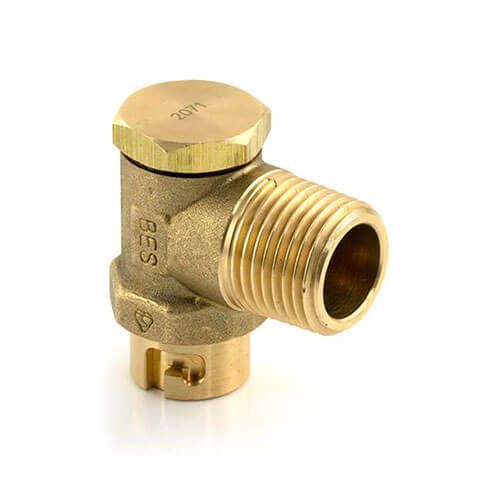

Angled Micropoint Bayonet Gas Cooker Socket (15mm)
Precision-engineered, self-sealing angled bayonet socket that attaches to the backplate for a tidy, leak-resistant cooker connection.
| Specification |
Details |
| Type |
Angled micropoint bayonet socket with self-seal |
| Standpipe size |
15mm |
| Gas types |
Natural Gas & LPG |
| Standards & approvals |
EN 1775 (650°C for 30 mins), EN15069, CE |
| Seals |
High-temperature resistant self-seal |
| Finish |
Polished / plated (model dependent) |
Benefits & typical use
Ideal for homeowners, landlords and installers who require a compliant, low-profile gas cooker connection. The angled design keeps the socket close to the wall for a tidy appearance and reduced hose stress when a cooker is connected.
- Low-profile installation for a neat kitchen finish
- Durable, tested components reduce replacement frequency
- Suitable for upgrades, replacements and new installations
Installation & safety information
Important: Gas connections must be installed or inspected by a Gas Safe / registered gas engineer where required by local regulations. Follow local building/gas safety codes.
Compliance: Socket tested to EN 1775 high-temperature endurance (650°C for 30 minutes) and EN15069 approval criteria; CE marked.
Frequently asked questions (FAQ)
- Does this bundle include a hose?
- No — this bundle contains only the 15mm backplate and the angled micropoint bayonet socket. Hoses are sold separately.
- Is this suitable for LPG?
- Yes — the socket and backplate are appropriate for use with both Natural Gas and LPG.
- Can I fit this myself?
- Mounting the backplate and fitting the socket is straightforward, but all gas connections should be completed or checked by a registered gas engineer where local regulations require.
Ready to buy?
Order this essential cooker connection bundle now — includes 1 × 15mm backplate and 1 × angled micropoint bayonet socket. Ideal for replacements and neat new installs.
15mm backplate, angled micropoint bayonet socket, 15mm bayonet socket, gas cooker backplate, gas cooker socket 15mm, EN1775 EN15069 CE, cooker connection parts
